That confirms really little, since a filter housing can remain pressurized through entraped liquid, compressed gas, thermal expansion, a passing isolation valve, a blocked air vent, a raised feed storage tank, or another pump attached through piping nobody kept in mind to trace.
So why do upkeep crews still grab the clamp initially?
I take a hard line on this: a filter real estate opening up procedure begins at the process layout, not at the cover. Opening the closure is the final act in a regulated energy-isolation sequence. It is never the initial.
OSHA’s hazardous-energy requirement, 29 CFR 1910.147, covers maintenance work where unforeseen start-up or the launch of stored power could hurt workers. It needs devices to be separated from power sources and rendered inoperative before maintenance begins.
The threat is not academic. An OSHA mishap document explains an employee killed on January 14, 2007, when the cover of a pressurized water-filter system blew off and struck him. The event summary is brutally brief since the physics needs no embellishment.
Stress acts throughout area.
At only 2 bar scale stress– about 29 psi– a circular lid with a 400 mm internal diameter is revealed to an idyllic separating force of concerning 25 kilonewtons, before thinking about dynamic release, contortion, uneven securing, caught gas, temperature, or effect results. That is approximately comparable to the weight pressure of more than 2.5 statistics tonnes.
Reduced stress exists.
Operators hear “only a few psi” and envision a weak press. Yet stress increased by lid location creates pressure, and compressed gas or blinking hot fluid can launch that pressure virtually promptly.
The 2023 United State Chemical Safety Board record on the Yenkin-Majestic event shows how rapidly a supposedly low-pressure vessel can come to be harmful. Pot stress increased from roughly 0 to 4 psig in 15 seconds; at concerning 9 psig, material started running away around a closed manway, and stress later on peaked at 18 psig. The pot’s high-pressure alarm was set at 2 psig, its trip at 4 psig, and its tear disk carried a significant burst pressure of 16.5 psig.
A filter real estate is not that resin pot. The lesson still transfers: stress can increase faster than a person can detect it, and a closure might stop working before the defense device reacts as drivers anticipate.
The secure state is not “quit.”
It is a documented condition in which every resource capable of presenting stress, circulation, movement, heat, vacuum, chemical direct exposure, or electric power has actually been determined, separated, protected, dissipated, and individually inspected.
Prior to beginning a cartridge filter real estate opening or bag adjustment, identify:
And do not rely upon memory. Utilize the current piping and instrumentation layout, valve checklist, operating treatment, devices handbook, and seclusion certification.
OSHA has specifically dealt with filter replacement on pumping systems. Its interpretation explains separating upstream and downstream shutoffs, eliminating stress, draining pipes the filter real estate, and opening it only after those controls have been used. OSHA additionally specifies that simply continuing to be within arm’s reach of a valve is not an alternative to needed hazardous-energy control.
Close down the pump or process making use of the normal operating controls. Prevent making use of an emergency situation stop as the routine shutdown approach unless the site treatment especially needs it.
Record appropriate running details prior to shutdown:
A high differential pressure can indicate a heavily packed cartridge or bag. That restriction may slow down pressure equalization and might catch liquid or gas in ways an operator does not expect.
Shut the specified upstream and downstream seclusion valves. Separate bypass lines, recirculation lines, air-assist connections, chemical application lines, heavy steam lines, drain manifolds, and any kind of common header with the ability of re-pressurizing the real estate.
After that use the website’s lockout/tagout system.
One shut shutoff is typically weak seclusion. For hazardous, hot, harmful, corrosive, combustible, or high-pressure solution, the risk evaluation might need dual block and hemorrhage, a spectacle blind, a line blind, physical disconnection, or one more positive-isolation approach.
My point of view is blunt: a control-valve command on a screen is not isolation. A green symbol is not a lock.
Stand clear of the discharge path. Use the PPE defined by the chemical and task risk analyses.
Open up the marked high-point air vent or pressure-relief connection gradually. Transmit the discharge to a shut drain, recovery vessel, scrubber, flare, collection container, or various other authorized location where the released product can not strike, burn, poisonous substance, or swallow up any individual.
Never ever position your face over the air vent. Never ever use your hand to check whether pressure continues to be. And never improvise by loosening up a lid screw, clamp, scale, threaded plug, nozzle, or pipeline union as the primary ventilation approach.
A controlled pressure relief valve procedure must expose whether the housing still has:
Vent up until flow and sound quit. Maintain the air vent in its risk-free open position under the authorized isolation strategy.
Open up the designated low-point drain slowly. Verify that the receiving system has adequate capability and is chemically suitable with the fluid.
Expect a blocked drain. A drain that creates no circulation does not confirm the housing is vacant; the port might be obstructed with debris, polymer, fibers, range, biofilm, or collapsed filter media.
For real estates using small polypropylene elements, such as a 5-inch PP cartridge with a clear filter real estate, noticeable liquid degree can be handy, but transparency needs to never ever be dealt with as evidence of absolutely no pressure. The referenced cartridge array consists of 5- to 40-inch formats and rankings from 0.1 to 100 microns, suggesting the solution problems and fouling behavior can vary considerably.
This is the step teams abbreviate. It is additionally the action that keeps the lid attached.
Use at the very least 2 suitable signs whenever the danger requires it:
A solitary gauge can be isolated by a closed root shutoff, blocked by solids, damaged, improperly adjusted, improperly ranged, or positioned where it does not detect an entraped pocket.
Absolutely no is proof. Not proof.
If the gauge reviews zero however the air vent gives off material, quit. If the air vent is silent but the real estate continues to be hot, stop. If the drain is blocked, stop. If stress returns after venting, stop and locate the dripping or misaligned seclusion point.
Clear workers from above, close to, and before the cover’s feasible travel path.
For an upright housing, the cover may raise up. For a horizontal vessel, a closure can swing, turn, or launch side to side. Hinges do not guarantee restriction. Davit arms are lifting help, not pressure-retaining devices.
Placement the driver sideways of the closure whenever the devices style allows. Do not lean over the lid, straddle clamps, or area hands in between the cover and body flange.
Various closures fail in a different way.
For swing-bolt covers, loosen the bolts uniformly in a cross-pattern while observing the lid. For bolted flanges, utilize the specified sequence and maintain sufficient string involvement to keep the cover throughout the first break. For V-band or clamp-ring closures, comply with the producer’s method precisely; saved stress can transform a partly launched clamp right into an abrupt opening.
For quick-opening closures, validate that the mechanical interlock, warning device, stress indicator, joint, securing sector, and keeping components are intact before attempting release.
Do not hammer the lid. Do not utilize a cheater bar. Do not substitute fasteners. Do not force a clamp previous resistance.
Resistance is information.
If the closure will not release under normal hand-tool pressure, pressure, vacuum, gasket attachment, corrosion, product formation, distorted equipment, or wrong assembly may still exist. Reflect on the risk-free state as opposed to escalating pressure.
After the retaining mechanism has been loosened up according to the maker’s instructions, break the gasket seal carefully while maintaining the cover mechanically limited.
Time out immediately if you discover:
Re-secure the closure only when that can be done safely. Leave the area if the launch can not be regulated.
Once absolutely no energy has actually been reconfirmed, lift or swing the cover using the designed handle, pivot, davit, lift, or lifting point.
Control the lid’s weight. Huge covers can create pinch, crush, and ergonomic hazards even after pressure has been removed.
Secure the lid versus dropping or swinging. Never ever count on hydraulic pressure, air cyndrical tubes, improvisated rope, or an unsecured joint to hold a hefty cover over an employee.
| Checkpoint | Appropriate proof | Stop-work problem |
|---|---|---|
| Refine shutdown | Pump stopped through normal controls | Tools cycles, shakes, or reboots |
| Upstream seclusion | Correct shutoff secured and marked | Valve identification or setting doubts |
| Downstream isolation | Heartburn path isolated | Shared header can feed the housing |
| Complementary power | Air, nitrogen, heavy steam, CIP and actuators separated | Untraced connection stays live |
| Venting | Engineered air vent open; discharge has actually quit | Vent obstructed, harmful release unrestrained |
| Draining pipes | Approved drain open; fluid removed | No flow from believed complete real estate |
| Pressure confirmation | Determine at absolutely no plus independent verification | Gauge disagreement or pressure reaccumulation |
| درجة الحرارة | Within website maintenance limit | Hot liquid, vapor or thermal growth stays |
| Closure problem | Correct equipment, no visible damage | Bent clamp, damaged screws, missing interlock |
| Worker setting | Exemption zone clear | Anybody stands above or before the cover |
| الأعمال الورقية | Authorization, LOTO and procedure total | Seclusion plan insufficient or out-of-date |
A shutoff might suggest closed while damaged seats allow pressure to leakage through. The housing depressurizes, the operator pauses, and stress silently returns.
That is why the air vent might need to remain open and why reaccumulation must be examined before cover release.
Sludge, crystallized chemicals, polymer, corrosion, fibers, or biofilm can separate the gauge from real vessel pressure. An obstructed air vent can develop the very same false confidence.
An analysis of 0 bar from a blind instrument is just a neat-looking error.
Gas shops much more releasable power than an incompressible fluid at the same indicated pressure. Even a fairly small gas pocket can speed up a cover or spray fluid when the seal breaks.
Water solution is not immediately benign. Compressed air can stay trapped over water, and cozy water can flash or launch dissolved gas as pressure changes.
One OSHA instance involved a natural-gas coalescing filter vessel determined as version 95V-W12A-I-18-550-WP. 2 draw screws were intended to be tightened up to 354 lb-ft, or 480 N · m, with extra spacing resistances. Workers supposedly used crescent wrenches, were unaware of the requirements, and returned the vessel to solution; the cover blew off and killed a 37-year-old worker.
That case kills a typical market misconception: if a lid looks shut, it is shut.
Torque, fastener problem, interaction, clamp placement, element spacing, gasket compression, and assembly series are design requirements– not cosmetic details.
Fluid caught in between shut shutoffs can expand as it heats. A real estate at absolutely no stress throughout an awesome morning closure might re-pressurize under procedure heat, steam mapping, sunshine, or ambient-temperature increase.
Keep accepted alleviation paths open when called for by the isolation treatment.
When the cover is protected open, examine rather than merely change.
Inspect the following:
Do not reuse a gasket just due to the fact that it has not split. Compression set, chemical swelling, hardening, cuts, flattening, and contamination can protect against consistent sealing.

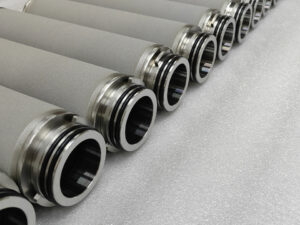

Filter-media selection likewise changes maintenance needs. A multiple-use sintered stainless-steel industrial filter might be cleansed and gone back to service, while a polypropylene deepness cartridge is generally changed. The referenced sintered elements are supplied in 10-, 20-, 30-, and 40-inch sizes, yet component durability never gets rid of the demand to inspect the pressure-retaining housing and closure.
For sediment applications, verify that replacement 5- or 10-micron PP melt-blown cartridges match the needed size, size, end setup, material compatibility, differential-pressure limitation, and real estate plan. An element that physically fits can still be technically wrong.
Tidy the sealing surfaces without scraping them. Mount the defined gasket in the correct positioning. Usage just the lubricating substance allowed by the maker and procedure– particularly in oxygen, pharmaceutical, semiconductor, food, drink, or high-purity water applications.
Shut the cover and involve the closure evenly.
For bolted systems, follow the manufacturer’s staged cross-torque series. For clamp rings, verify complete seating around the area. For swing bolts, confirm proper placement, string interaction, spacing, nut position, and torque. Change damaged hardware with specified parts, not whatever is offered in the upkeep baby crib.
Then carry out a regulated reboot:
Never tighten closure elements on a pressurized housing unless the tools supplier and an approved site treatment explicitly permit a specified adjustment. “Simply one more turn” is exactly how a leakage comes to be a release.
The best methods are not creative:
And right here is the awkward component: experience can make this work less risk-free when repeating transforms a pressure vessel into “the filter we open every Tuesday.”
Experience is not regulate.
The most safe way to open a pressurized filter real estate is to isolate every energy resource, lock and tag the seclusion factors, vent and drain via engineered connections, verify absolutely no stress with more than one independent indicator, and just then loosen the closure while standing outside the lid’s release course.
The housing-specific producer guidebook and the center’s energy-control treatment need to control the specific shutoff sequence, PPE, closure method, torque worths and reboot test. OSHA needs dangerous power to be regulated prior to servicing or maintenance starts.
Zero on a pressure scale implies only that the instrument is showing zero at its noticing point; it does not confirm the real estate is vacant, the vent path is clear, a shutoff is holding, or trapped pressure can not stay behind fouled media, an obstructed port, or a closed dental caries.
Confirm absolutely no stress through a crafted open air vent or drain pipes, verified isolation settings and an additional ideal indicator. Any type of disagreement, proceeded discharge, unforeseen temperature or stress reaccumulation is a stop-work condition.
A pressure relief valve treatment is the regulated approach for opening a marked vent or bleed path, transmitting liquid or gas to a secure location, confirming flow has stopped, and maintaining the air vent open till maintenance is complete so stress can not calmly restore inside the isolated filter housing.
The treatment must recognize the appropriate vent, discharge location, PPE, valve-opening price, blocked-port feedback and zero-energy checks. It ought to not depend on loosening a lid, scale, union or threaded plug to discover whether pressure remains.
A V-band clamp is risk-free to loosen only after the filter is favorably separated, aired vent, drained pipes and individually verified at zero energy, because the clamp is a closure tool as opposed to a stress indicator and partial loosening can release the cover unexpectedly if stress remains.
Check the band, T-bolt, nut, hinge points, flange interaction and manufacturer-specified placement before reuse. Bent, cracked, worn away, mismatched or improvisated clamp components ought to get rid of the real estate from service.
A filter real estate might go back to service just after the appropriate cartridge or bag is installed, sealing faces are clean, the specified gasket and lubricating substance are utilized, fasteners or clamps fulfill the supplier’s series and torque needs, and a controlled low-pressure leak check is finished from a safeguarded placement.
Tape the preliminary inlet, outlet and differential stress. Quit the restart if the lid changes, pressure behaves abnormally, leak shows up, the vent will certainly unclear trapped gas, or any type of closure component fails to remain completely seated.
A common checklist is a starting point. It is not a tools handbook.
Send the housing design, style stress, operating temperature level, process liquid, closure type, gasket product, link layout, filter-media measurements and expected differential stress to the equipment distributor before composing the last maintenance procedure.
For systems using polypropylene deepness media, evaluate the offered PP debris cartridge setups for industrial water filtering. For reusable or higher-temperature applications, contrast the operating conditions with sintered stainless-steel filter choices.
Open up the lid last. Verify two times. And when the evidence problems, quit the work.
