A high flow cartridge filter real estate might appear like an easy stainless-steel covering, but once it consists of a number of hundred liters per min at elevated stress, its closure, welds, nozzles, cartridge seals, venting plan, and paperwork become part of the RO plant’s risk account.
Why, after that, do so many order define little more than “SS316, 5 micron, 150 psi”?
My candid view: that is not an engineering requirements. It is a shopping note.
A defensible RO pretreatment filter real estate requirements must answer 4 separate concerns:
Those concerns cause different standards. There is no solitary paper called the “worldwide high circulation filter real estate standard” that settles all 4.
A high flow cartridge filter housing rests at the intersection of a number of standards households:
The present ASME Central heating boiler and Pressure Vessel Code version is the 2025 BPVC. Its pressure-vessel areas attend to style, building, evaluation, accreditation, materials, welding credentials, and overpressure protection. However ASME conformity does not automatically imply that every real estate needs a U-stamp; that decision depends upon the authority having territory, vessel measurements, stress, service, exemptions, and agreement language.
And ISO 9001? Valuable, yes. Item approval, no.
ISO itself states that ISO does not license companies or problem certifications. A recognized third-party certificate can reveal that a producer operates a quality-management system, however it does not show that a particular housing satisfies ASME Section VIII, PED 2014/68/EU, NSF/ANSI/CAN 61, or the buyer’s style duty.
That distinction gets blurred constantly.
Before asking just how to choose a high circulation cartridge real estate, specify the process instance. The design questions must include:
Circulation alone is misleading.
A real estate marketed for 200 m ³/ h might reach that flow only with clean water, a specific cartridge design, a low initial stress decrease, and no allocation for dust loading. Adjustment the cartridge media or allow ΔP to rise from 0.2 bar to 1.0 bar, and the operating economics transform sharply.
The distributor should consequently supply a pressure-drop contour for the full assembly– not just a maximum flow figure. That curve needs to recognize water temperature level, viscosity, cartridge version, number of cartridges, clean problem, and examination approach.
For smaller sized systems, a 40-inch SUS304 single-cartridge filter real estate might highlight the standard cartridge-and-shell plan. Its web page identifies 10-, 20-, 30-, and 40-inch arrangements with 5- or 10-micron string-wound cartridges, however those magazine information still require to be converted into a project-specific pressure, chemistry, and documentation spec.
ASME Area VIII is regularly utilized as the construction basis for pressure-containing industrial filter real estates. The code structure addresses inner and outside pressure, acceptable products, manufacture, examination, evaluation, screening, and qualification. The present project specification ought to specify the called for code version rather than simply stating “ASME design.”
That wording matters.
“Developed according to ASME concepts” is not comparable to:
I would certainly decline any quotation that makes use of “ASME requirement” without recognizing the area, department, edition, certification standing, and exemptions.
At minimum, the mechanical style review ought to cover:
MAWP and layout temperature: The real estate should be examined at the coincident layout pressure and temperature, not at a practical ambient-temperature score.
Closure layout: Swing screws, V-band clamps, threaded closures, and quick-opening covers produce different hazards. The driver needs to not have the ability to open a pressurized real estate. A pressure-relief treatment is not a substitute for a sound mechanical design.
Cyclic service: Constant cartridge adjustments, stress pulsation, pump starts, water hammer, and duplicated sanitization cycles can make exhaustion more important than constant stress.
Nozzle loading: Heavy valves, unsupported pipework, and thermal motion can transfer loads right into inlet and outlet connections.
Vacuum: A vessel rated for favorable interior stress might still buckle throughout draining pipes, cooling, or blocked-vent procedure unless exterior stress has actually been taken into consideration.
Overpressure protection: A blocked electrical outlet, closed isolation shutoff, thermal development, or pump deadhead condition need to be evaluated at system degree. The housing nameplate is not an overpressure-protection gadget.
For equipment positioned on the European Union market, Directive 2014/68/EU– the Stress Devices Instruction– generally uses when optimum allowed pressure exceeds 0.5 bar. Category after that depends on devices kind, stress, volume or nominal size, liquid group, and fluid state.
Water made use of in RO pretreatment will certainly often be treated en masse 2 fluid with vapor pressure no more than 0.5 bar over normal air pressure at the optimum allowed temperature level. For vessels in that service, Write-up 4 uses pressure and the PS × V item to determine whether official conformity-assessment groups use or whether the equipment remains within sound design method.
That suggests “PED certified” is insufficient. Ask for:
For suitable classified tools, the PED calls for technical paperwork, conformity assessment, final inspection, and pressure-containment evaluation, usually consisting of a hydrostatic stress examination. Relevant affirmations and technical records should usually remain offered for ten years after the tools gets in the marketplace.
Documents is engineering here.
The active ASTM A240/A240M -26 requirements covers chromium and chromium-nickel stainless-steel plate, sheet, and strip used for stress vessels and basic applications. It develops chemical-composition and mechanical-property requirements, yet it does not choose whether SS304 or SS316L is suitable for a specific RO feedwater.
SS316L is typically the much safer default where chlorides, acidic cleaning remedies, coastal exposure, or raised temperature levels raise localized-corrosion danger. Still, 316L is not a magic guard.
Crevices continue to be prone. Weld warmth color matters. Stagnant chloride-rich water matters. Oxidants issue. Temperature issues.
A significant cartridge filter real estate specification should determine:
ASTM A967/A967M -25 covers nitric-acid, citric-acid, and electrochemical passivation therapies, in addition to qualitative examinations made use of to verify removal of cost-free iron and various other surface contamination. A quotation claiming “polished and passivated” is for that reason weaker than one recognizing the treatment, treatment, acceptance examination, and examination record.

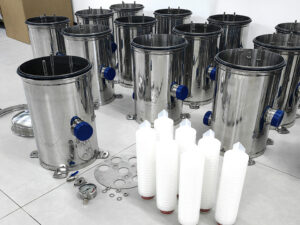

A large-capacity SS304 or SS316 cartridge filter real estate can be set up in 10-, 20-, 30-, or 40-inch layouts and provides a functioning pressure of 150 psi. That works initial information– however it is not, on its own, proof of code classification, cyclic-pressure capability, material traceability, or chemical compatibility.
The shell and the cartridge kind one hydraulic system. Specifying them individually, without inspecting their interface, is just one of the industry’s quieter errors.
DuPont’s RO technological assistance recommends an absolute pore dimension below 10 μm as the minimal cartridge pretreatment for RO, with 5 μm outright as the typical suggestion. Where colloidal silica or metal-silicate fouling is a worry, it identifies 1– 3 μm outright filtering as a possible option.
Outright issues.
A nominal 5 μm cartridge does not necessarily supply the very same retention as a 5 μm absolute cartridge. Procurement groups must ask for a recorded performance value at the mentioned fragment size, such as a beta ratio or portion removal under a specified examination protocol.
DuPont also advises a synthetic, non-degradable cartridge product such as polypropylene or nylon, together with differential-pressure sign. Quick ΔP growth can signify an upstream pretreatment failure rather than a cartridge trouble. Changing cartridges regularly than each to three months might similarly indicate that the security filter is being forced to do bulk-solids removal.
That is the hard reality: a last RO cartridge filter is a guard filter, not an alternative clarifier.
For sediment-heavy feeds, commercial string-wound filter cartridges are available in ratings from 1 to 100 μm, lengths from 5 to 60 inches, and several fiber-and-core mixes. They can serve as cost-effective deepness filters, however the purchaser still requires confirmed retention, collapse resistance, extractables, temperature level restrictions, and chemical compatibility.
At the various other end, a PES pleated membrane cartridge with absolute micron scores deals much better retention, with listed membrane options consisting of PP, PVDF, PTFE, PES, and nylon. Such fine filtering may fit specialized sprucing up or microbial-control obligations, but 0.1 or 0.22 μm purification is not immediately the best economic option for traditional RO pretreatment.
Finer is not constantly better.
| Demand area | Basic or design basis | What it manages | What it does not verify |
|---|---|---|---|
| Stress control | ASME BPVC Area VIII or appropriate national code | Pressure style, products, manufacture, exam, testing, certification | Cartridge retention performance or water-contact safety and security |
| EU market conformity | PED 2014/68/EU | Classification, consistency assessment, documentation, marking, traceability | Membrane layer protection efficiency |
| Stainless-steel plate | ASTM A240/A240M -26 | Chemical make-up and mechanical residential or commercial properties of stainless plate, sheet, and strip | Viability for the job’s chloride, pH, temperature, and oxidants |
| Passivation | ASTM A967/A967M -25; job procedure | Chemical passivation therapies and verification tests | Elimination of all construction defects or suitability of poor weld geometry |
| Potable-water call | NSF/ANSI/CAN 61, where needed | Health and wellness results of products and components speaking to alcohol consumption water | Pressure-vessel code compliance |
| Hygienic/high-purity service | ASME BPE or job sanitary criterion | Materials, fabrication, cleanability, surface demands, examination and testing | An universal need for average commercial RO |
| RO bit protection | Membrane provider’s pretreatment advice | Suggested micron ranking, ΔP tracking, substitute and fouling signs | Architectural stability of the housing |
| Maker top quality system | ISO 9001 certification | Documented quality-management procedures | Accreditation of the private housing to ASME, PED, or NSF |
NSF/ANSI/CAN 61 covers drinking-water system elements including filters, gaskets, signing up with products, procedure media, pipes, and mechanical tools. NSF records that almost all U.S. states and Canadian districts or territories require or advise conformity for drinking-water distribution components, although the exact local requirement needs to still be confirmed.
ASME BPE, on the other hand, addresses devices for bioprocessing and various other high-purity applications, consisting of products, style, fabrication, assessment, testing, and accreditation. Using it to a pharmaceutical water supply might be ideal; imposing it blindly on every industrial RO pretreatment skid can add cost without resolving the actual process risk.
An expert cartridge filter real estate submittal must include greater than a glossy drawing.
على الأقل، اطلب ما يلي:
No contour, no confidence.
The manufacturer needs to additionally document the specific cartridge utilized throughout hydraulic testing. A housing checked with an open support basket does not develop the pressure loss of the supplied cartridge setting up.
I would certainly rack up completing housings in this order:
First, legal reputation. Verify the installation territory, regulating pressure code, PED standing, drinking-water get in touch with requirements, and proprietor specs.
Second, process compatibility. Compare stress, temperature, chloride focus, pH, oxidants, cleaning chemicals, solids filling, viscosity, and organic problems against the proposed materials.
Third, hydraulic performance. Need clean and loaded ΔP information at real circulation. Include cartridge-to-cartridge circulation distribution in big multi-element housings.
4th, maintainability. Examine cartridge weight when wet, above clearance, cover-lifting support, drainability, driver reach, gasket replacement, and risk-free depressurization.
Fifth, documentation. Treat missing out on certificates as a cost and routine risk, not an administrative hassle.
The cheapest shell is typically one of the most pricey housing once an undocumented weld fixing, unavailable gasket, high cartridge-change regularity, or failed site inspection quits the RO train.
Current public information places that procurement self-control in context. The EPA’s 7th drinking-water infrastructure survey approximated $625 billion in U.S. investment needs over twenty years. In May 2024, EPA independently reported a minimum of $630 billion in wastewater, stormwater, and related clean-water framework demands, covering 17,544 publicly had treatment works offering 270.4 million people. Those numbers are not a cartridge-housing market forecast; they show the range at which maintainability, traceability, and lifecycle price currently matter.
A housing can fulfill its stated pressure and still carry out terribly.
Typical examples include:
Cartridge bypass: Inaccurate end adapters, weak springs, poor sealing surfaces, or inappropriate O-rings allow unfiltered water circulate the cartridge.
Irregular flow distribution: Poor interior geometry overloads cartridges near the inlet while remote cartridges add little bit.
Excessive tidy ΔP: Undersized nozzles, sudden flow paths, tiny cartridge area, or unneeded micron decrease waste pump power instantly.
Closure leak: A code-calculated covering does not compensate for a distorted cover, damaged groove, incorrect gasket firmness, or irregular bolt loading.
Chloride matching: A 316L nameplate can not save heat-tinted welds, stagnant gaps, contaminated hydrotest water, or bad passivation.
Instrumentation blindness: One pressure gauge tells the operator almost absolutely nothing. Differential stress requires trustworthy upstream and downstream measurement at comparable altitudes.
Harmful airing vent: Opening a leading closure prior to pressure gets to no can transform a routine cartridge become a serious case.
Simple devices? Rarely.
A high circulation cartridge filter real estate for RO pretreatment is controlled by a pile of demands covering pressure honesty, materials, weld top quality, water-contact safety, cartridge retention, differential-pressure surveillance, and regional conformity, rather than by one global real estate criterion that immediately fits every circulation price, feedwater, and jurisdiction.
ASME Section VIII or one more nationwide pressure code might control building. PED 2014/68/EU may govern EU market placement. ASTM requirements might define stainless materials and passivation, while NSF/ANSI/CAN 61 or ASME BPE may relate to safe and clean or high-purity solutions.
ASME Area VIII is a pressure-vessel building code generally defined for industrial housings, however a U-stamp is required only when the controling jurisdiction, proprietor requirements, insurer, or contract makes it mandatory for that real estate’s stress, quantity, solution, installment place, and layout setup.
The proper strategy is to obtain a created code decision prior to buying. “ASME developed” should never be presumed to imply code-stamped, independently checked, or registered.
A 5 μm outright cartridge is the standard starting factor for lots of RO pretreatment systems since it shields the high-pressure pump and membranes from suspended fragments, while less than 10 μm absolute is widely treated as the minimum and 1– 3 μm outright may suit specific silica or metal-silicate dangers.
The final ranking needs to think about SDI, turbidity, upstream therapy, cartridge substitute frequency, colloidal make-up, membrane-supplier needs, and whether the stated ranking is small or absolute.
SS316L is typically chosen over SS304 when chloride exposure, hostile cleaning chemistry, coastal air, or greater temperature boosts localized-corrosion risk, yet neither alloy is immediately risk-free; the final choice must comply with actual chloride concentration, pH, oxidant residual, temperature, weld condition, gap geometry, and anticipated life span.
For severe brackish water, seawater, warm chlorides, or oxidizing chemistry, duplex stainless-steel, higher-alloy stainless steel, lined carbon steel, FRP, or another product may should have assessment.
The most effective high circulation filter housing for RO pretreatment is the system that meets called for flow at an acceptable tidy and incurable differential pressure while also pleasing MAWP, temperature, rust, cartridge geometry, upkeep gain access to, drainability, instrument, paperwork, and local-code needs with a defensible security margin.
Brand name and shell diameter come later. Begin with the operating envelope, then contrast verified hydraulic contours, cartridge accessibility, construction documents, closure security, and lifecycle price.
A total real estate information bundle need to recognize layout code and version, MAWP, style temperature, wetted materials, warm numbers, weld procedures, welder qualifications, nondestructive evaluation, hydrostatic test results, passivation approach, elastomer grade, surface coating where defined, dimensional illustrations, spare components, and the precise cartridge interface.
For PED or code-stamped equipment, add the appropriate statement, qualification mark, notified-body or authorized-inspector records, producer’s information report, and traceability documents required by the setup territory.
Do not send distributors only a circulation rate and micron score. Send out the water evaluation, pressure envelope, temperature level, cartridge specification, allowed ΔP, suitable code, certification need, link criterion, elastomer choice, and called for paperwork bundle.
After that contrast like with like.
Review the readily available SS304 and SS316 large-capacity cartridge housing arrangements and request a quote against your actual RO pretreatment obligation– not against a common directory optimum.
