UPVC single-bag housing for process liquid filtration, supporting Size #1 and #2 filter bags. Flange, BSP and NPT connections with 2″, 3″ and 4″ port sizes provide options for industrial piping and equipment projects.

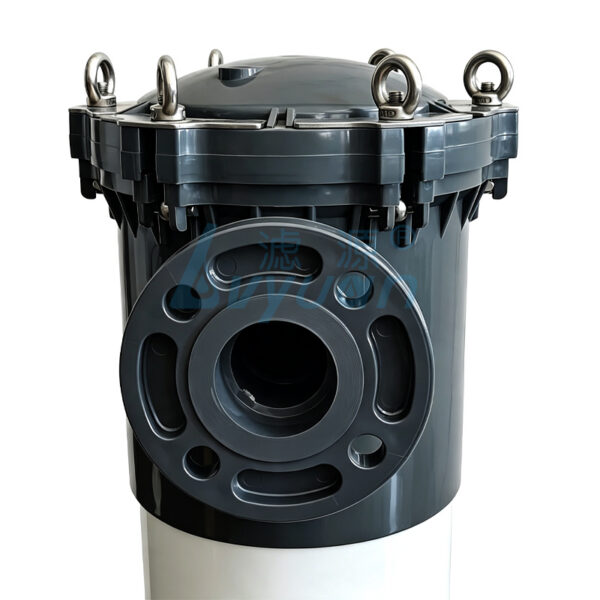

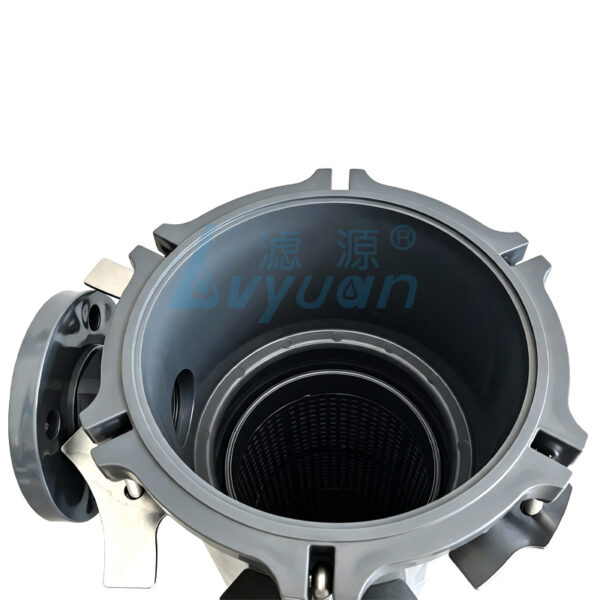

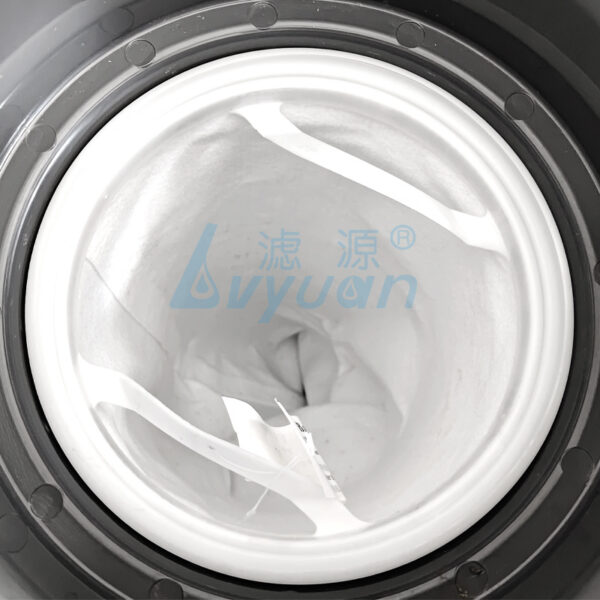

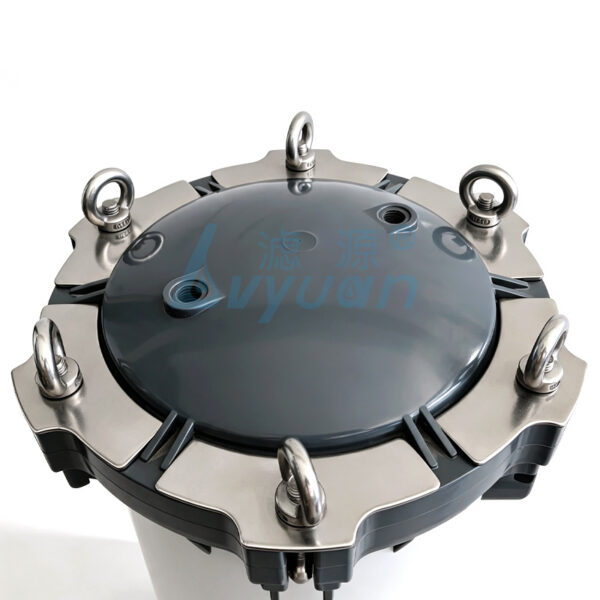

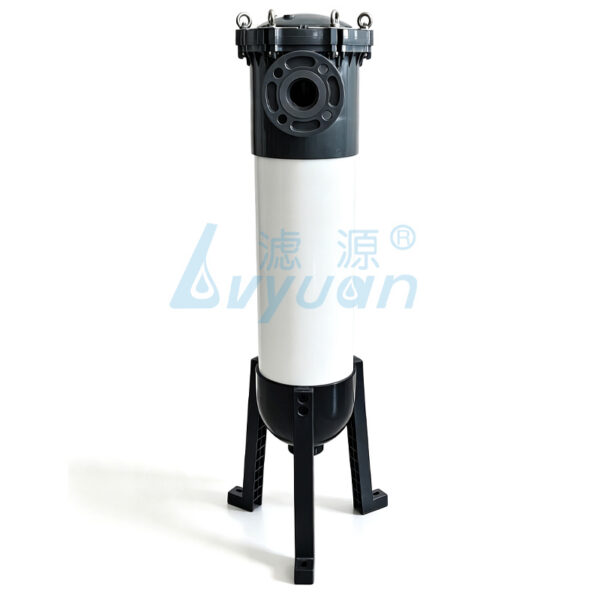

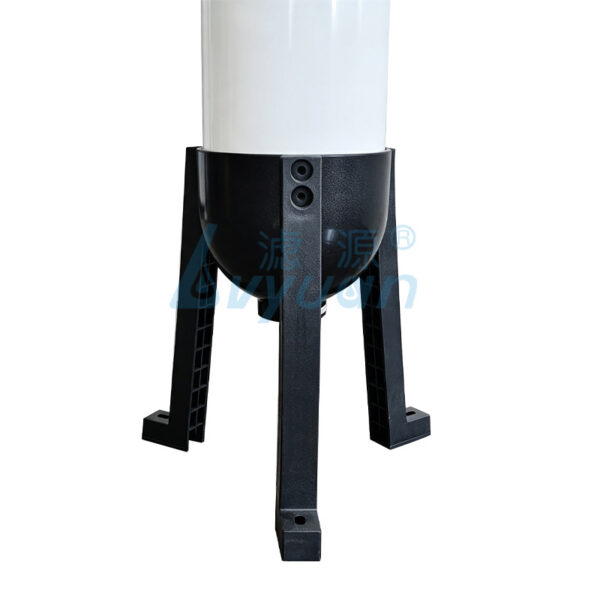

The product images show a vertical single-bag housing with a cylindrical body, molded upper and lower sections, three support legs and a removable top cover secured by multiple swing eye bolts. A large side flange is clearly visible near the upper section, while the supplied images also show the internal perforated support basket, filter bag, sealing rings and removable cover components. The housing is configured for Size #1 or #2 filter bags and can be supplied with flange, BSP or NPT process connections.
Confirmed specifications state a maximum operating pressure of 87 psi (6 bar) and a maximum operating temperature of 122°F (50°C), with allowable pressure subject to temperature derating and actual service conditions. Flow can reach up to 130 GPM depending on bag size, connection diameter, liquid viscosity and pressure drop. The construction is intended for industrial filtration solutions where a non-metallic single-bag housing is required for process liquid filtration, equipment integration and project sourcing.
|
